Product Description

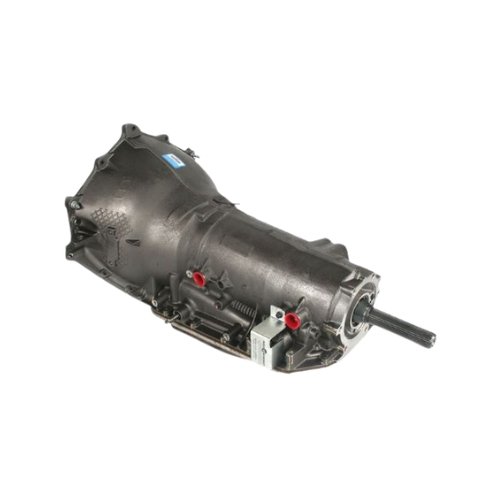

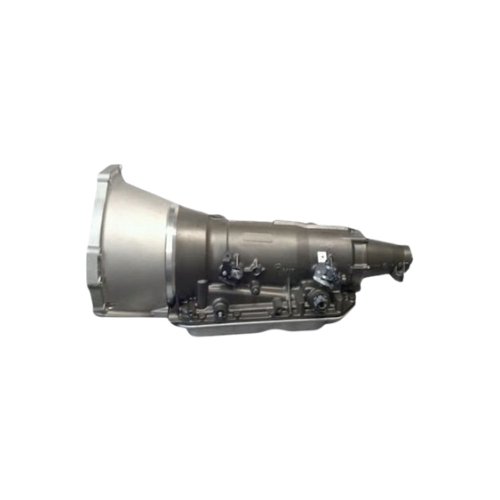

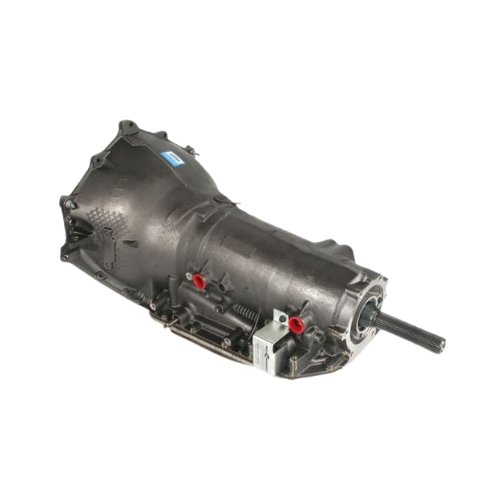

The 4L80E transmission evolved from GM’s legendary TH400, featuring electronic overdrive control and lock-up torque converter technology. With gear ratios of 2.48:1 (1st), 1.48:1 (2nd), 1.00:1 (3rd), and 0.75:1 (4th overdrive), this transmission delivers smooth shifts and highway fuel efficiency. Compatible with 1991-2013 GM trucks including Silverado 2500/3500, Sierra HD, Suburban 2500, Hummer H1, Chevrolet Corvette, and Camaro models equipped with V8 engines, the 4L80E features a removable bellhousing for various engine adaptations. Builders pairing complete drivetrains should explore our selection of used engines including LS-series and big-block Chevy options compatible with 4L80E bolt patterns. Discover more about GM automatic transmissions .
Every 4L80E transmission undergoes pressure testing, shift quality evaluation, and includes warranty coverage ensuring reliable operation for demanding applications and high-performance builds.
Frequently Asked Questions
What vehicles is the 4L80E transmission compatible with for swaps?
The 4L80E transmission fits 1991-2013 GM Silverado/Sierra HD, Suburban 2500, Hummer H1, 1991-1996 Corvette, and 1991-1992 Camaro. It’s extremely popular for swaps behind LS engines, big-block Chevys, and diesel powerplants in classic trucks, muscle cars, and off-road builds using aftermarket controllers and transmission adapters.
How much horsepower can a stock 4L80E transmission handle?
Stock 4L80E transmissions handle approximately 440 lb-ft of torque or 400-450 HP reliably. With upgraded clutch packs, billet input/output shafts, and performance valve body modifications, the 4L80E safely supports 700-1,000 HP. Built units with hardened components handle 1,200+ HP in drag racing and diesel applications.
Is the 4L80E transmission reliable for towing and daily driving?
Yes, the transmission demonstrates exceptional reliability for towing and daily use when properly maintained with fluid changes every 30,000-50,000 miles using Dexron VI ATF. The robust planetary gearsets and overdrive unit handle heavy loads excellently. Many units exceed 200,000 miles with routine maintenance, especially in HD truck applications.
What’s the difference between 4L80E and 4L60E transmissions?
The transmission is significantly larger and stronger than the 4L60E, featuring deeper gearsets, wider clutch packs, and 440 lb-ft torque capacity versus 4L60E’s 360 lb-ft limit. The 4L80E uses different bellhousing bolt patterns, requires unique controllers, and weighs approximately 236 lbs versus 4L60E’s 150 lbs. Choose 4L80E for high-torque V8 engines and heavy-duty applications.
Can I use a 4L80E transmission with LS engine swaps?
Absolutely. The 4L80E transmission pairs perfectly with LS-series engines using factory or aftermarket adapter bellhousings. Electronic control requires standalone TCU (transmission control unit) or integrated engine management system. The 4L80E provides excellent strength for boosted LS builds, offering superior durability compared to lighter-duty 6-speed automatic options in extreme applications.
4L80E Transmission – GM Heavy-Duty 4-Speed Automatic
